Long spiral pile driver, types are crawler self-propelled and vehicle-mounted crane, automobile, agricultural three-wheel four-wheel, tractor can be installed! The function is more complete, the scope of use is wider!

After drilling to the design depth of the long spiral drilled hole and the pumped mixture in the pipe, the time to lift the drill pipe should be accurately mastered. The pumping volume of the mixture should be matched with the speed of the pipe extraction. When saturated sand or saturated silt is encountered The pump should not be stopped for the next layer; the speed of unplugging the tube should be controlled at a uniform speed, and the speed of unplugging should be controlled at about 1.2-1.5m/min. In case of silt or muddy soil, the speed of unplugging should be properly placed slow.

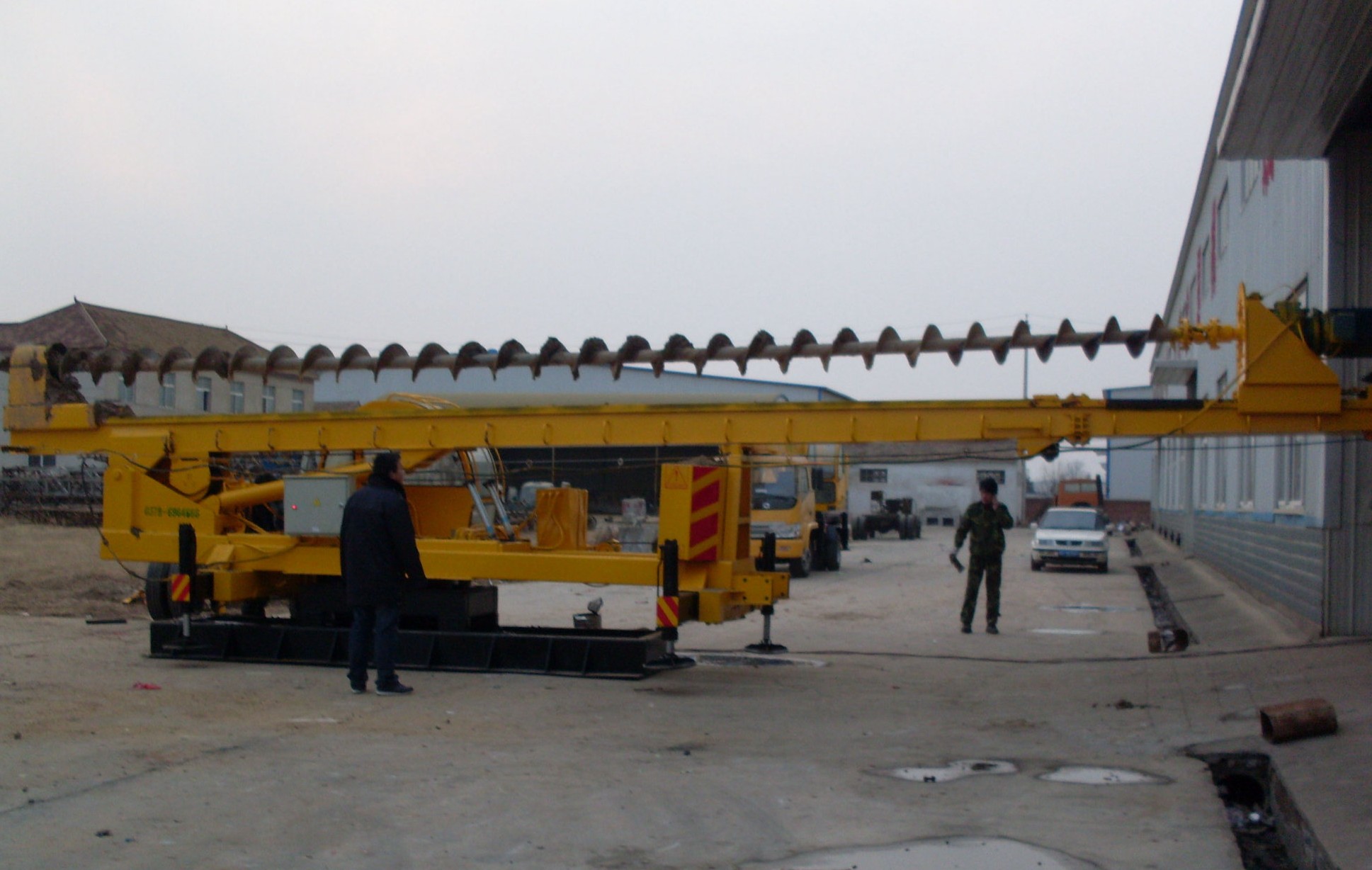

Consists of top pulley block, upright, diagonal brace, hydraulic walking pile frame and drilling system

Pile driver model DZJ4-12M

The machine includes hydraulic walking pile frame and drilling system. The pile frame adopts hydraulic walking chassis, with a high degree of automation, and can walk and rotate 360 degrees on its own. It is equipped with four hydraulic legs and a walking oil cylinder to assist walking and rotation while increasing the stability of the whole machine during construction. The whole machine can be transferred . The column is a foldable box type column with flange connection. The column uses two high-thickness masks and is bent by a large bending machine. It is welded by two welds and four welds are added to the column every 60 cm. The ribs are fixed to increase the torsion and bending resistance of the column. The column is controlled by two hydraulic cylinders with variable amplitude. The drilling system includes a power head and a drilling tool. The output shaft of the power head and the auger are hollow. The pile driver uses a long spiral to make holes. The concrete {or mud] can be pumped through the center pipe of the drill pipe to construct the CFG pile. , Which can be drilled into a hole and completed in one machine at a time. It can also be used in the hydraulic walking pile frame of the dryer. It is mainly composed of the top pulley group, upright column, diagonal brace, chassis, walking mechanism, slewing mechanism, winch mechanism, control room, hydraulic system and electrical System composition.

The upright column is foldable, adopting box-shaped cross-sectional structure and flange connection. The two sides of the column are equipped with round or square slides as a guide for the power head and the up and down movement of the drill rod and torsion resistance. The box-shaped foldable column equipped with this type of drilling rig uses hydraulic cylinders to take off and land, which is convenient and fast, and does not need to be disassembled during transportation. The lower part of the column is hinged with the upper plate, the middle rear part is hinged with the diagonal brace, and the top of the column has a pulley set to complete the lifting and landing of the power head, steel cage and grouting duct. The power head can be slid up and down along the slideway and detachable when checked.

The walking mechanism is hydraulic walking. The four legs hydraulic cylinder props up on the ground, and the undercarriage is driven off the ground by the hydraulic system to realize the driving of the pile driver shoes, then the legs are retracted, and the chassis is retracted by the hydraulic cylinder to pull the chassis forward. The operation enables the pile driver to move forward.

The slewing mechanism is driven by the medium-speed hydraulic motor through the reducer. With the cooperation of the four outrigger hydraulic cylinders, the pile driver can realize 360-degree rotation. Because the hydraulic motor has the characteristics of stable power, smooth operation, small rotational inertia and high starting efficiency, the pile driver has the advantages of stable rotation, no impact, no vibration, good stability of the whole machine and long service life.

The power head adopts three-ring deceleration mechanism, which is already a quite mature product. The reducer with large center hole has high overload capacity, compact structure, low noise and long life. It is the most ideal power device for domestic drilling rigs. It consists of two air-cooled motors, reducers, elbows, exhaust devices, lifting racks, and skids. During operation, the two motors drive the high-speed rotation of the reducer through the coupling, and the low-speed power shaft drives the drill rod and drill bit through the flange for rotary movement.

It consists of 7 hydraulic cylinders. It contains 4 outrigger cylinders, 1 walking cylinder, and 2 luffing cylinders. The outrigger oil cylinders are distributed at the four corners of the machine to achieve two heights of the main body of the machine: 1.1 meters and 1.6 meters. Different height cylinders are used according to different machine models. The walking oil cylinder is located in the middle of the chassis of the whole machine, and it is equipped with 4 outrigger oil cylinders, so that the walking oil cylinder contracts and pulls the chassis to move the whole machine forward. The walking cylinder is 1.6 meters long, so the machine's walking step is 1.6 meters. The luffing cylinder is located at the front of the mid plate, and the bottom of the column is behind, which mainly acts as a support for the column. The contraction of 7 cylinders can be operated in the operating room.

The control room is located in front of the main hoist at the rear of the drilling rig. It has an iron shell structure and windows on three sides to ensure wide vision, safety and comfort!
