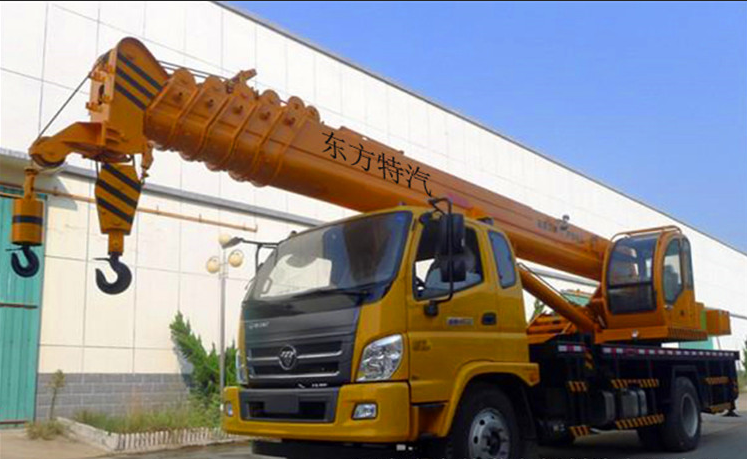

Foton 12-ton truck crane

Foton 12-ton truck crane

Consumer Hotlin
Manager Lu: +86-18637816666
Manager Bu: +86-13781116896

Dongfang Special Automobile Crane

Dongfang Special Automobile specializes in the production of 3-16 tons of truck cranes, truck cranes, full name truck cranes. It is a kind of crane mounted on ordinary automobile chassis or special automobile chassis. Its driving cab is set separately from the lifting control room. The advantages of this crane are good maneuverability and rapid transfer. The disadvantage is that the concept of a car crane is required to combine the car and the crane when working, and can work by itself without assembly. The outrigger cannot drive under load and is not suitable for soft or muddy fields. It is convenient and flexible for work, high in work efficiency, fast in transition, and improved in work efficiency. It is mainly used for engineering construction. Such as: highways, bridges, construction, emergency rescue, etc.

In general engineering, there is a rotating drum under the boom, which is surrounded by a steel wire rope. The steel wire rope pulls the previous boom out through the pulley on the top of the next boom, and so on. When retracting, the drum reversely recovers the wire rope, and the boom retracts under its own weight. This rotating drum is driven by a hydraulic motor, so you can see two oil pipes, but don't use it as an oil cylinder.

In addition, some telescopic arms of automobile cranes are equipped with a plunger type cylinder, but this kind of application is very rare. Because the multi-stage plunger cylinder is expensive, and the boom will elastically bend when it is loaded, which has a great impact on the life of the cylinder. The construction industry has a rotating drum under the boom, which is surrounded by a wire rope, and the wire rope passes Pull the pulley on the top of the next section of the boom, and so on. When retracting, the drum reversely recovers the wire rope, and the boom retracts under its own weight. This rotating drum is driven by a hydraulic motor, so you can see two oil pipes, but don't use it as an oil cylinder.

In addition, some telescopic arms of automobile cranes are equipped with a plunger type cylinder, but this kind of application is very rare. Because the cost of the multi-stage plunger cylinder is expensive, and the boom will elastically bend when it is loaded, which has a great impact on the life of the cylinder. Hand-held brakes are generally not allowed when electric cranes are in driving state. Otherwise, the transmission system parts will be damaged due to overload.

The electrical system of the truck crane chassis is used to undertake the work of starting, lighting and signaling of the car. The system electrical appliance adopts the single-wire system connection method. The rated voltage is 24 VDC, and the negative electrode is grounded. The electrical system is composed of two parts: power supply and electrical equipment. The power supply is composed of a battery, a DC generator and a regulator. The electrical equipment includes starters, lighting devices and signaling devices. The installation department requires a car crane.

Products

■ New body: The new body of Ruiwo Es-2200, new luxurious interior, reasonable ergonomic layout, comfortable driving;

■ Dedicated chassis: 250 double-layer beams, strong carrying capacity, fuel economy, ample power, standard auxiliary box to meet different working conditions;

■ Professional top design: Henan Lankao Dongfang Special Auto Crane, straight arm hydraulic cylinder, 5-stage telescopic 700 high-strength steel U-shaped arm, hybrid oil and electricity, high efficiency and energy saving! ;

■ Safe and reliable: The crane can rotate 360 degrees in both directions. Fully automatic dual-chamber hydraulic legs with wide support legs and strong anti-rollover ability.

Equipped with a special operation room for construction machinery, the operation is convenient, safe and has a wide field of vision.

Product parameters

Vehicle Announcement

BJ5183JQZ-FA

Chassis Announcement

BJ3183DKPFA-FA

Vehicle size(mm)

11030 x 2380 x 3500

Wheelbase(mm)

4400

Engine model

YC4S160-50

Rear

153 Gas brake

Gearbox

8JS85E

Frame(mm)

250 x 65 x 8 plus 4-800

Tire

10.00R20

Body

Rivo E3-1995

Number of reeds

10/12 plus 9

Total mass(kg)

17500

Quality(kg)

17305

Crane model

12TQ2

Maximum lifting mass(kg)

16000

Maximum torque capacity(KNm)

360

Lift height(mm)

38500

Base arm length(mm)

8300

Number of working arm knots

6

Legs

Double H legs

Swing speed (r/min)

3

Other configurations

Power steering, heating,MP3,spare tire, preheating device, electrically controlled stalling, clutch power, adjustable steering wheel, exhaust brake, driving recorder,ABS
